Pipeline by input type¶

BomLens accepts several kinds of input — source code, firmware, an SBOM you received, and an AI model. Each has its own generation step that builds a CycloneDX SBOM, and then they all converge on one shared post-processing pipeline (notice, security, risk report). This page walks the tool flow for each input. For the high-level two-stage view, see Architecture.

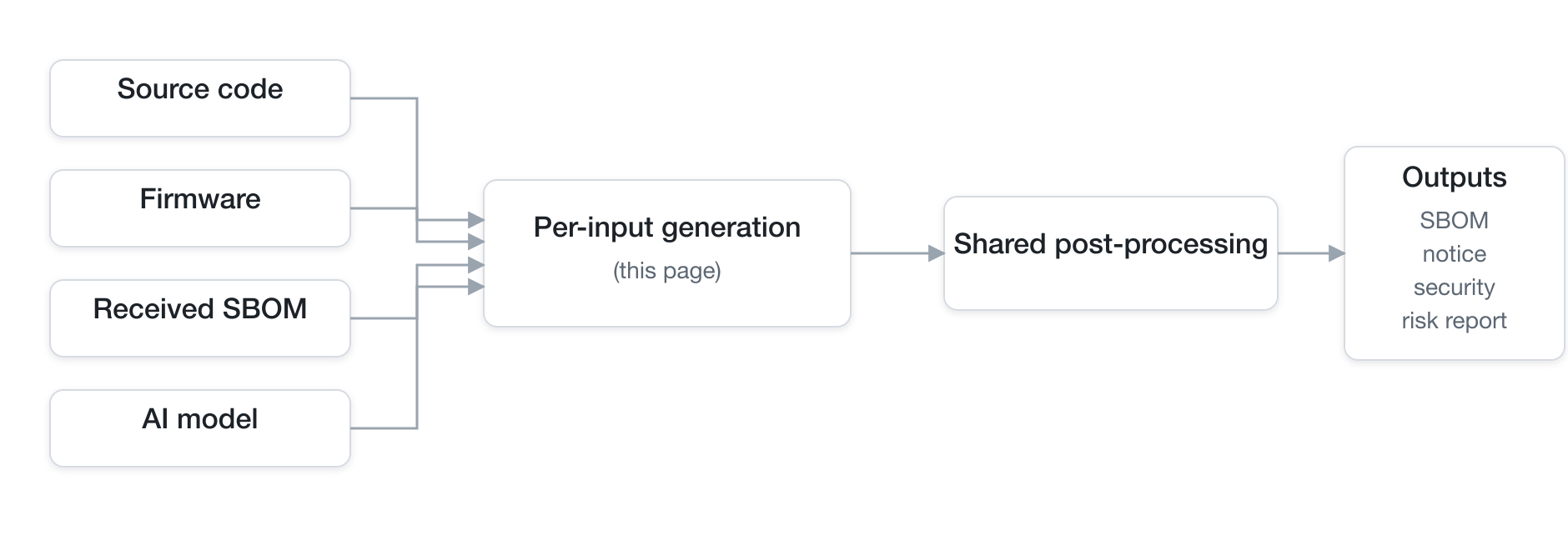

Four input types converge on per-input generation and one shared post-processing pipeline

Every external tool below is open source; the table in Open-source tools used lists each one's role, license, and project link.

Source code¶

A source folder, a GitHub URL, or a ZIP archive. Language detection picks the matching official cdxgen language image, which prepares dependencies (build-prep.sh) and generates the SBOM. When BomLens cannot run a sibling container (for example the web UI's source scan), it falls back to syft over the directory, which captures direct dependencies from lock files.

Two options apply to source scans only, and both are off by default.

Identify vendored OSS (--identify-vendored, SCANOSS) — for C/C++ and other code copied in without a package manager. The SCANOSS client fingerprints files and queries the hosted OSSKB service, then BomLens reconciles the matches against what the package-manager scan already found and merges the rest into the SBOM.
Deep license detection (--deep-license, ScanCode Toolkit) — scans first-party source for license headers. It runs during post-processing and writes a separate _scancode.json.

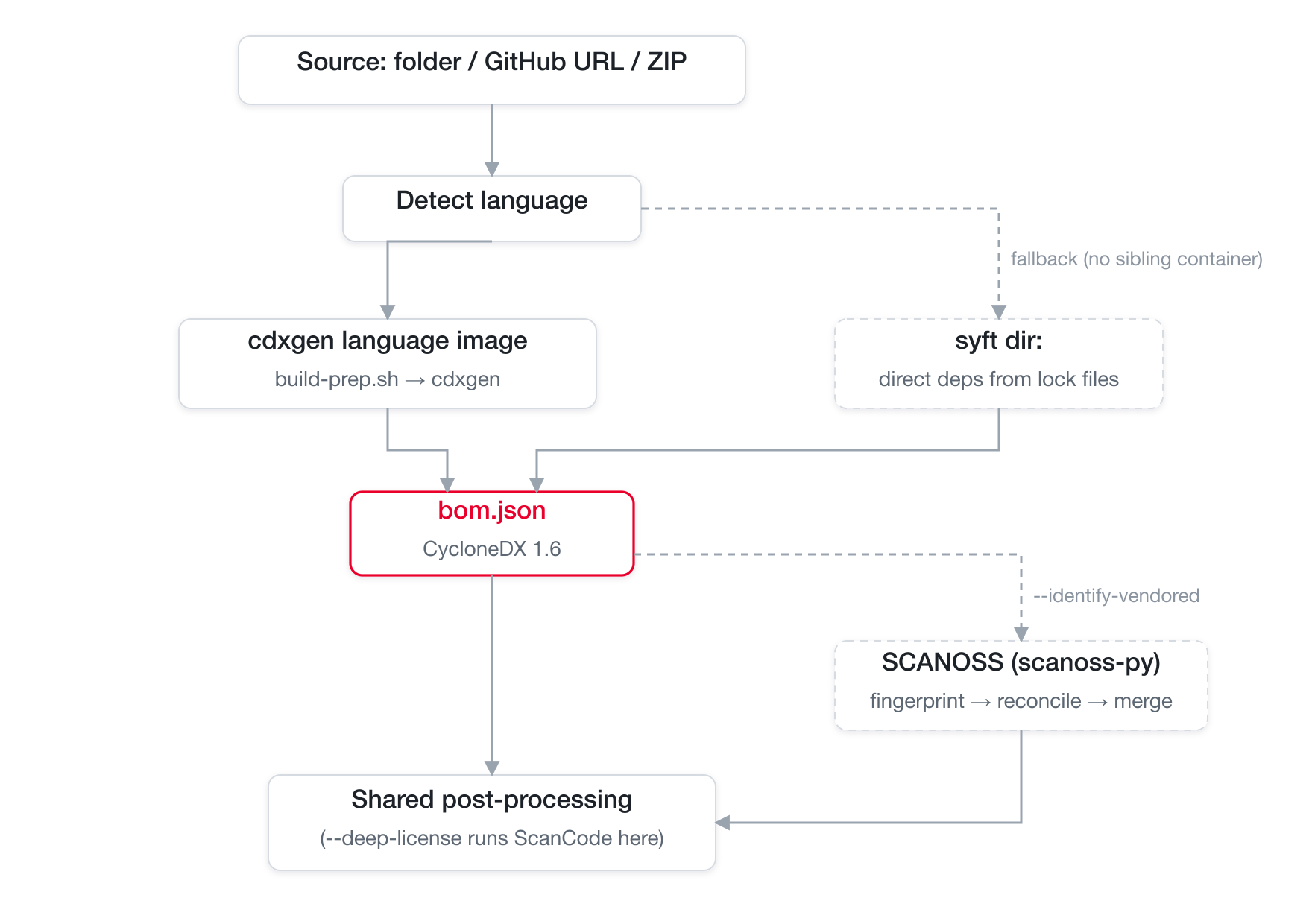

Source scan flow: language detection routes to a cdxgen image with a syft fallback, then optional SCANOSS before shared post-processing

Container images, single binaries, and directories (root filesystems) skip cdxgen and are scanned directly by syft, then follow the same post-processing.

Firmware¶

A network-device firmware image (.bin, .img.gz, squashfs, and more), handled by the opt-in bomlens-firmware image. Firmware packs an OS and dozens of libraries into one sealed file, so BomLens first unpacks it, then identifies components in two ways: package-manager metadata with syft, and stripped static binaries with cve-bin-tool (which also matches CVEs). The two results merge, and a CPE/SPDX enrichment step fills identifiers for a curated list of well-known OSS (busybox, dropbear, dnsmasq, …) so Trivy and the notice can use them.

Unpacking tries tools in order, using the first that succeeds: unblob (primary), unsquashfs for standard squashfs, 7z for the container formats Windows deliveries arrive in, then binwalk.

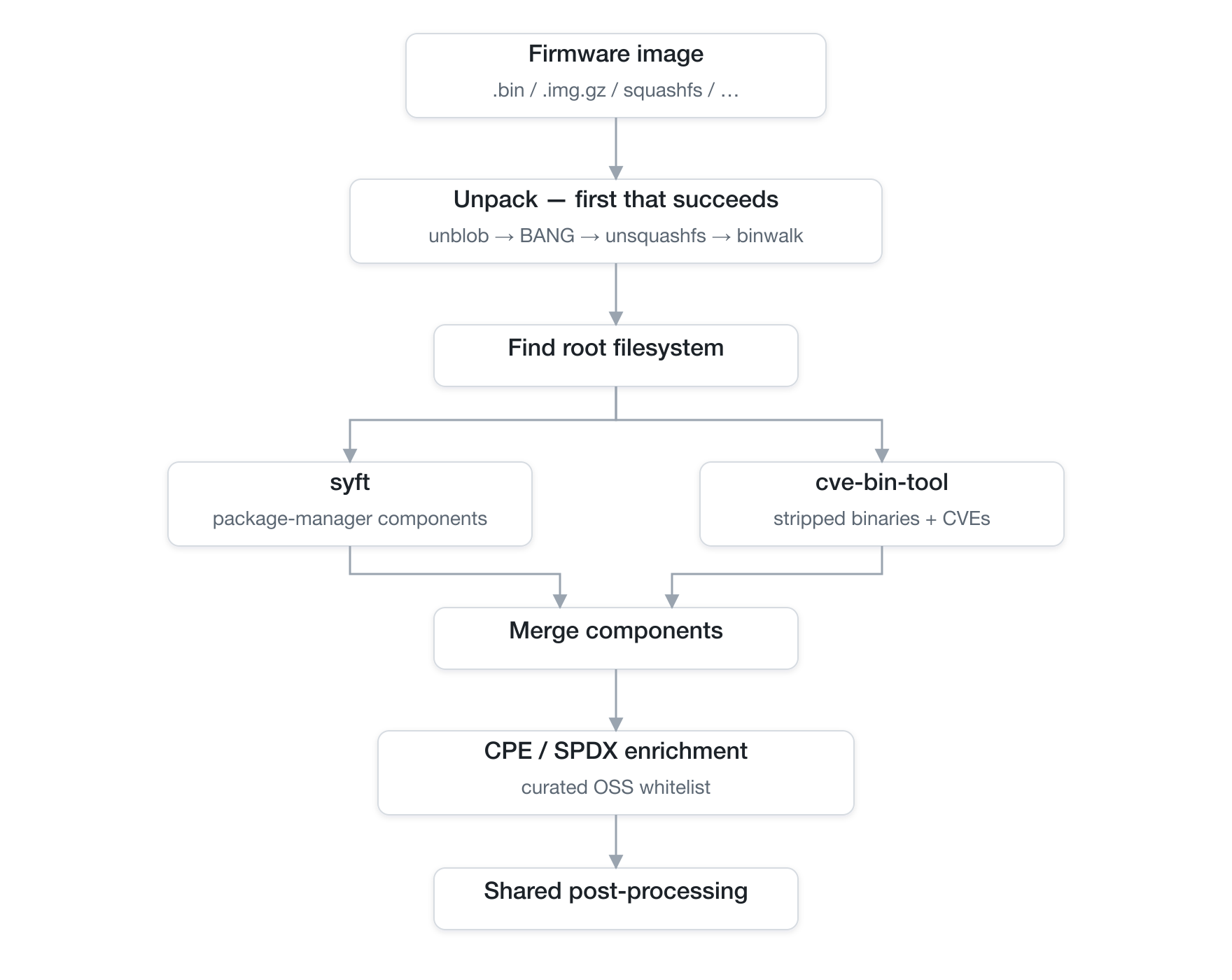

Firmware flow: unpack, find the root filesystem, scan with syft and cve-bin-tool in parallel, then merge, enrich, and post-process

The firmware tools are GPL-family, so they live only in the bomlens-firmware image and the base image installs none of them. See the firmware guide and its limits.

Received SBOM¶

An SBOM (CycloneDX or SPDX) received from a supplier or another team — no source code needed. BomLens first checks it against the quality criteria and writes a conformance report, then normalizes the input to CycloneDX so the rest of the pipeline can analyze it. SPDX is converted with syft convert (a jq fallback handles SPDX JSON if syft is unavailable). Notice, security, and the risk report are always produced in this mode.

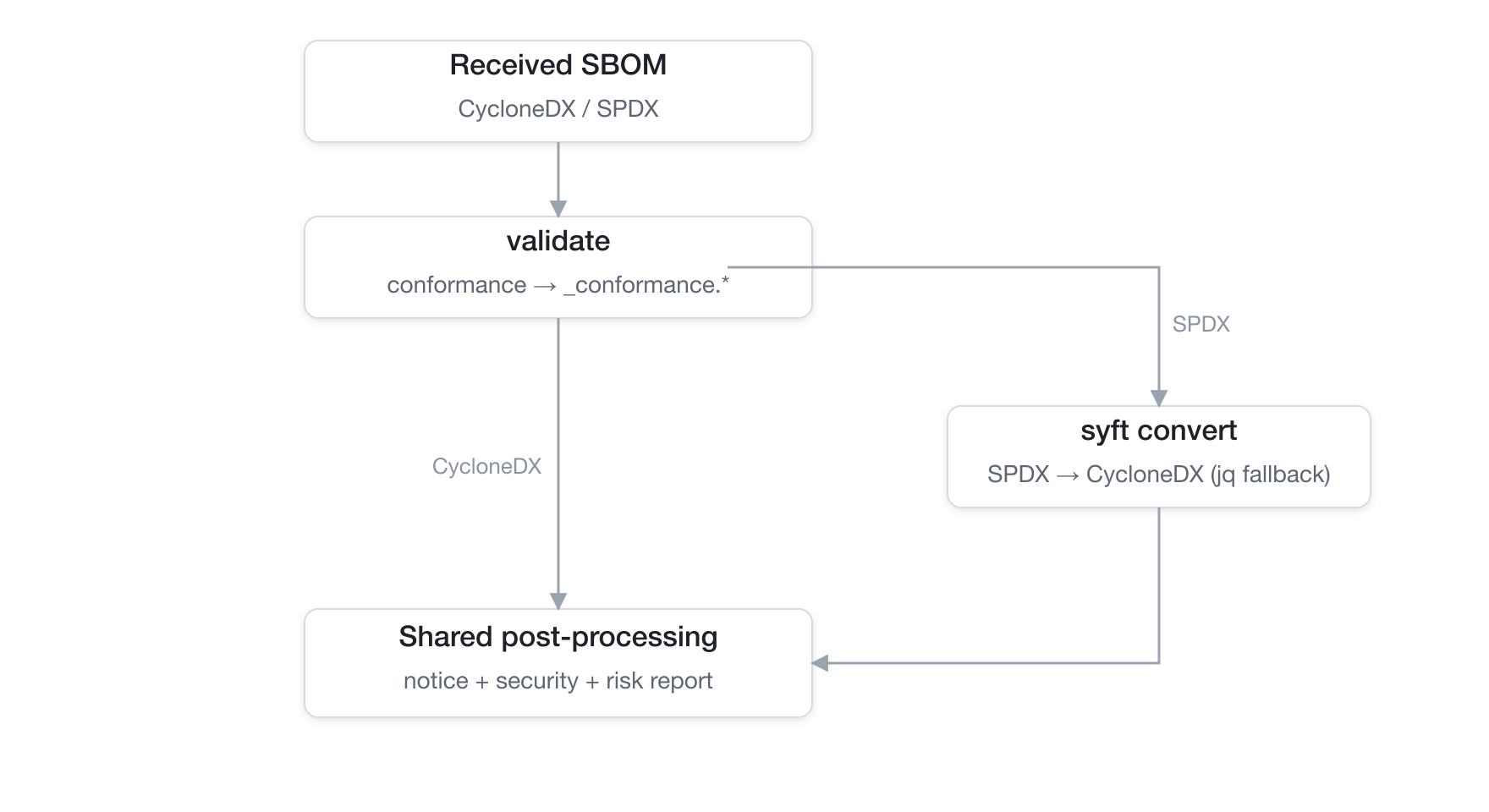

Received SBOM flow: validate for conformance, convert SPDX to CycloneDX, then shared post-processing

Validation is based on the original input before conversion, so SPDX is checked as SPDX. Details are in the supplier SBOM guide.

A Yocto build directory enters here too. Pointing --target at one is recognized, and the image SBOM the build published under tmp/deploy/images/ takes this same path — read by a dedicated parser that keeps the installed package set and the vulnerability verdicts the build recorded, rather than by the generic SPDX conversion.

AI model¶

A HuggingFace model id (org/model), handled by the opt-in bomlens-aibom image. The OWASP AIBOM Generator fetches the model-card metadata over the network and builds a CycloneDX 1.7 ML-BOM centered on the model and its datasets. Post-processing then adds a G7 minimum-element conformance check. Because an AI model has no package CVEs, the security report is skipped.

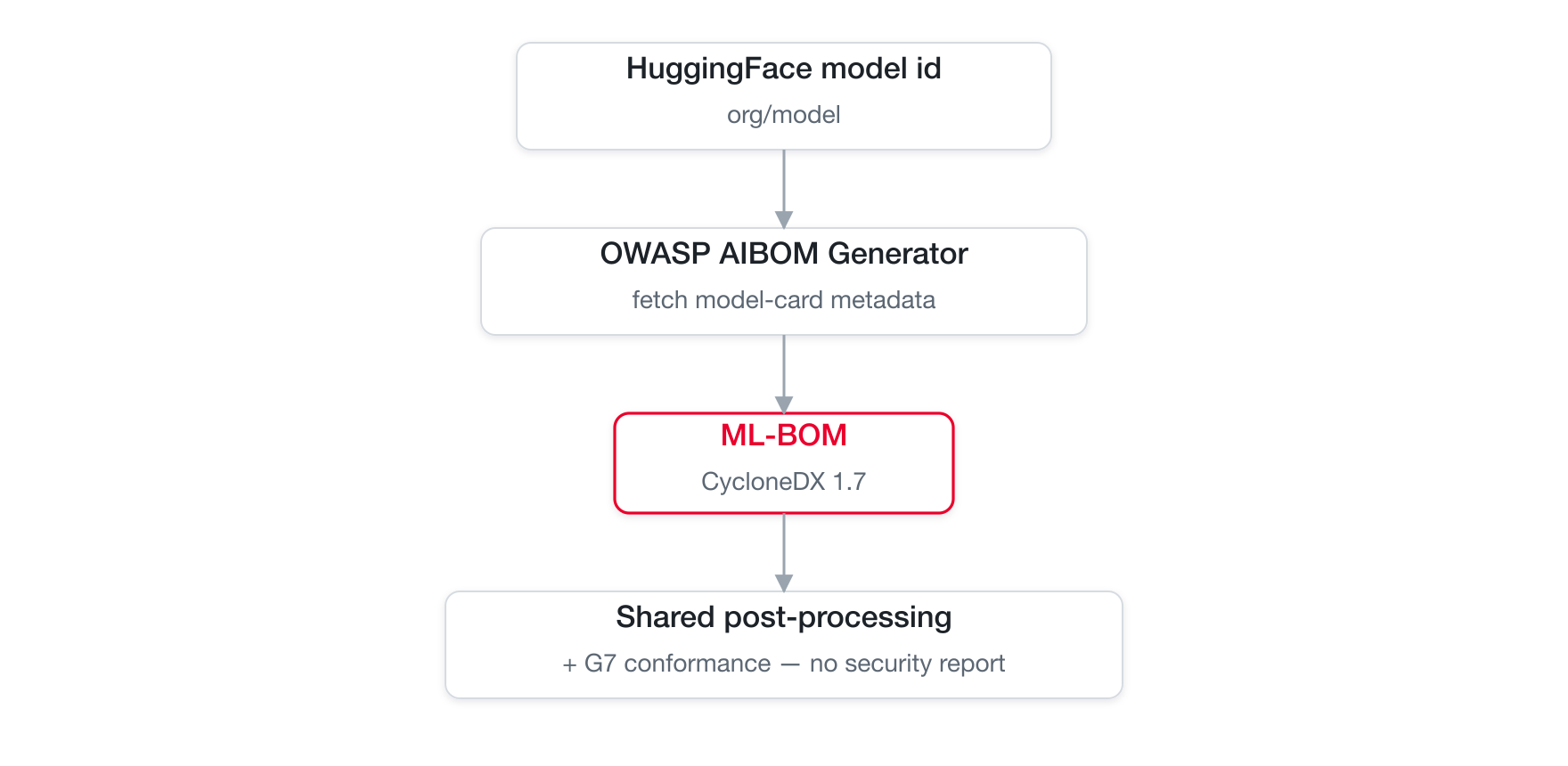

AI model flow: the OWASP AIBOM Generator builds a CycloneDX 1.7 ML-BOM that goes through shared post-processing

The model card's disclosure (weights, architecture, training data, training process) and the G7 result appear in the web UI's Models & datasets and G7 sections — see the web UI reference. For a step-by-step walkthrough, see the AI model guide.

Shared post-processing¶

Whatever the input, the SBOM flows through the same ordered steps. Normalization runs first to stabilize the input for every later step; signing runs last so it covers the final SBOM. Dashed steps are optional or input-specific. Each step is best-effort — a failure is skipped with a warning rather than aborting the scan (signing and upload excepted).

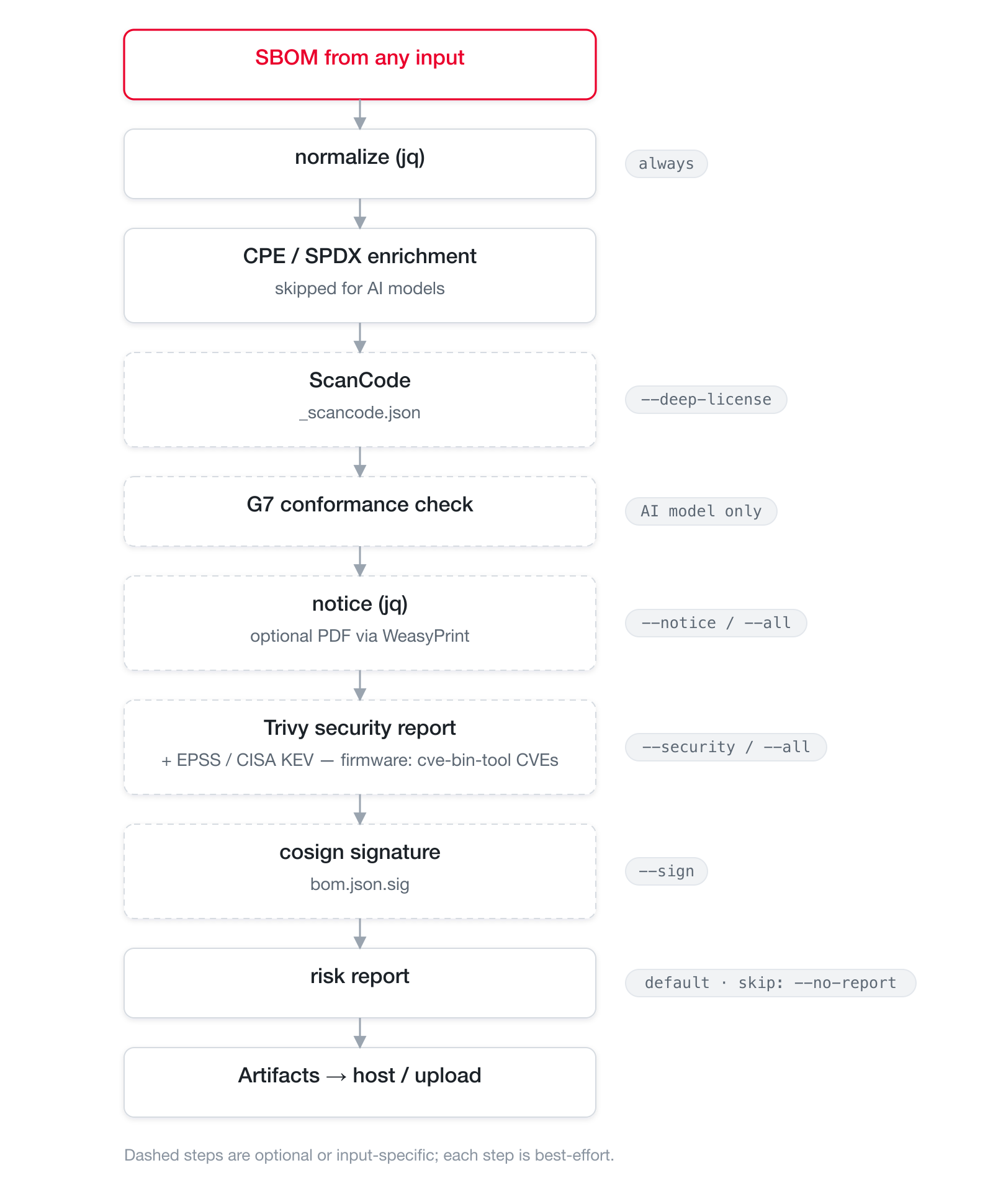

Shared post-processing steps in order from normalize to artifacts, with optional steps dashed

The risk report is generated by default in every mode (it aggregates licenses and vulnerabilities); skip it with --no-report. For the step-by-step flag mapping, see Architecture.

Open-source tools used¶

Every analysis tool is open source. The tools installed into the base image are permissively licensed; the GPL ones are isolated in the opt-in bomlens-firmware image, and the AI generator in bomlens-aibom. Every image also carries the GPL system packages of its Debian base, as any Linux image does — see Third-party licenses.

Tool	Role	Input	License	Image	Project
cdxgen	Generate the SBOM from source	source	Apache-2.0	language images	CycloneDX/cdxgen
syft	SBOM for images, binaries, directories, firmware rootfs	source (fallback), image, binary, rootfs, firmware	Apache-2.0	base / firmware	anchore/syft
SCANOSS (scanoss.py)	Identify vendored OSS via file fingerprints	source (`--identify-vendored`)	MIT	base	scanoss/scanoss.py
ScanCode Toolkit	Deep first-party license detection	source (`--deep-license`)	Apache-2.0	base (opt-in)	aboutcode-org/scancode-toolkit
unblob	Firmware unpacking (primary)	firmware	MIT	firmware	onekey-sec/unblob
sasquatch	Vendor squashfs variants standard unsquashfs refuses	firmware	GPL-2.0	firmware (opt)	onekey-sec/sasquatch
cve-bin-tool	Stripped-binary identification + CVE matching	firmware	GPL-3.0	firmware	intel/cve-bin-tool
OWASP AIBOM Generator	ML-BOM from a HuggingFace model card	AI model	Apache-2.0	aibom	GenAI-Security-Project/aibom-generator
Trivy	Vulnerability (CVE) security report	all	Apache-2.0	base	aquasecurity/trivy
cosign	Detached SBOM signature	all (`--sign`)	Apache-2.0	base	sigstore/cosign
WeasyPrint	Optional PDF rendering of the notice	all (`SBOM_PDF` build)	BSD-3-Clause	base (opt-in)	Kozea/WeasyPrint
jq	SBOM normalization, notice, report assembly	all	MIT	base	jqlang/jq

For the full license inventory and the GPL source-offer for the firmware image, see THIRD_PARTY_LICENSES.md.
